ADT 160 Intelligent Digital Pressure Modules
With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the ADT 160 series Intelligent Digital Pressure Module (IDPM) provides an accurate, reliable, and economic solution for wide range of pressure applications. It is loaded with functionality and remarkably easy to use. In order to reach the best performance, every silicon pressure sensor in the module has been specially aged, tested and screened before assembly. The ADT160 IDPM is unmatched in performance and reliability.
• Gauge pressure measurement uncertainty of 0.025% FS
• Absolute Pressure measurement uncertainty of 0.1% FS
• Pressure ranges to 10,000 psi (700 bar)
• Advanced temperature compensation
• NIST traceable calibration (optional)
Application ADT 160 series Digital Pressure Modules (IDPM) are specially designed for ADT 222A Multifunction Process Calibrators and ADT 223A Documenting Process Calibrators.· Gauge types
Gauge pressure
Absolute pressure
· Pressure Ranges and Accuracy
|
Gauge Pressure [1]
|
|||||
|
P/N
|
Pressure Range
(psi)
|
Pressure Range
(bar)
|
Media [2]
|
Accuracy
(% FS)
|
Burst Pressure
|
|
V15
|
-15
|
-1.0
|
G
|
0.025
|
3 X
|
|
GP15
|
15
|
1.0
|
G
|
0.025
|
3 X
|
|
GP30
|
30
|
2.0
|
G
|
0.025
|
3 X
|
|
GP50
|
50
|
3.5
|
G , L
|
0.025
|
3 X
|
|
GP100
|
100
|
7.0
|
G , L
|
0.025
|
3 X
|
|
GP300
|
300
|
20
|
G , L
|
0.025
|
3 X
|
|
GP500
|
500
|
35
|
G , L
|
0.025
|
3 X
|
|
GP1K
|
1000
|
70
|
G , L
|
0.025
|
3 X
|
|
GP3K
|
3000
|
200
|
G , L
|
0.025
|
3 X
|
|
GP5K
|
5000
|
350
|
G , L
|
0.025
|
3 X
|
|
GP10K
|
10000
|
700
|
G , L
|
0.025
|
2 X
|
|
Absolute Pressure
|
|||||
|
P/N
|
Pressure Range
(psi)
|
Pressure Range
(bar)
|
Media
|
Accuracy
(% FS)
|
Burst Pressure
|
|
AP15
|
15
|
1.0
|
G
|
0.1
|
3 X
|
|
AP30
|
30
|
2.0
|
G
|
0.1
|
3 X
|
|
AP50
|
50
|
3.5
|
G
|
0.1
|
3 X
|
|
AP100
|
100
|
7.0
|
G , L
|
0.1
|
3 X
|
|
AP300
|
300
|
20
|
G , L
|
0.1
|
3 X
|
|
AP500
|
500
|
35
|
G , L
|
0.1
|
3 X
|
|
AP1K
|
1000
|
70
|
G , L
|
0.1
|
3 X
|
|
AP3K
|
3000
|
200
|
G , L
|
0.1
|
3 X
|
|
AP5K
|
5000
|
350
|
G , L
|
0.1
|
3 X
|
Note:
[1]. Sealed gauge pressure for above 1000 psi
[2]. G=Gas, L=Liquid
· Environmental
Compensated Temperature:
14°F to 122°F (-10°C to 50°C)
14°F to 122°F (-10°C to 50°C)
Operating Temperature*:
14°F to 122°F (-10°C to 50°C)
*0.025%FS accuracy guaranteed only over the ambient temperature range of 68°F to 79°F (20°C to 26°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Humidity: <95%
· Media Compatibility
0 – 30 psi: Clean dry non-corrosive gases
50 – 10,000 psi: media compatible with 316L SS
· Pressure Connections
¼” NPT
· Enclosure
Case material: SST
Wetted parts: 316L SS
Dimension: Ø1.3” x 4.84” (Ø33mm x 123mm)
Weight: 0.99 lb (0.4kg)
Ordering Information

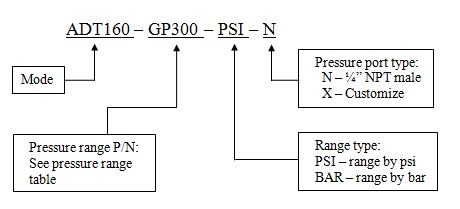

Model number:

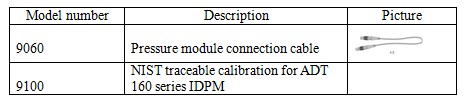

Optional Accessories:
